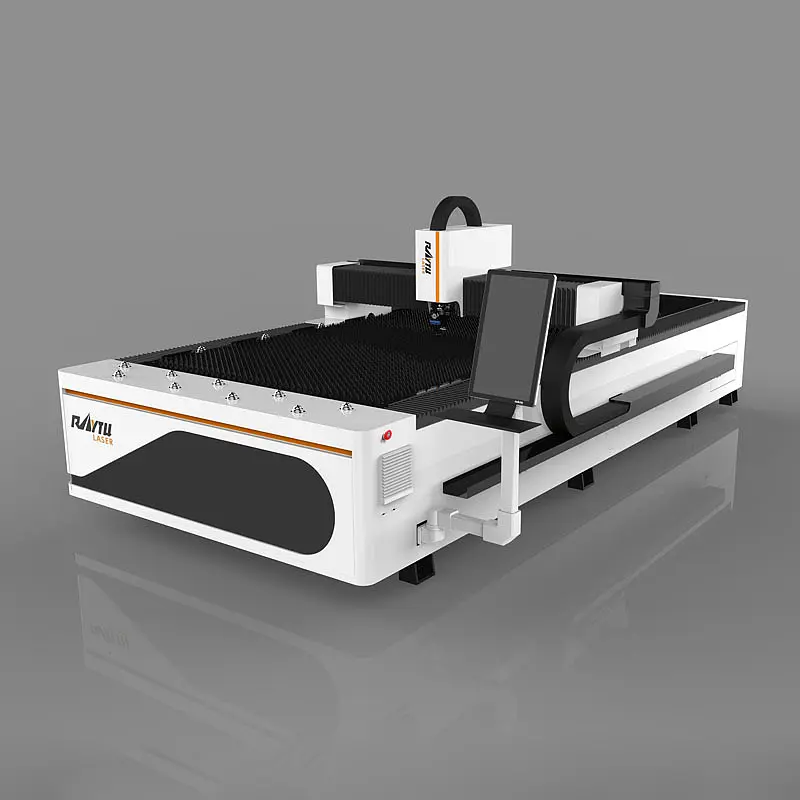

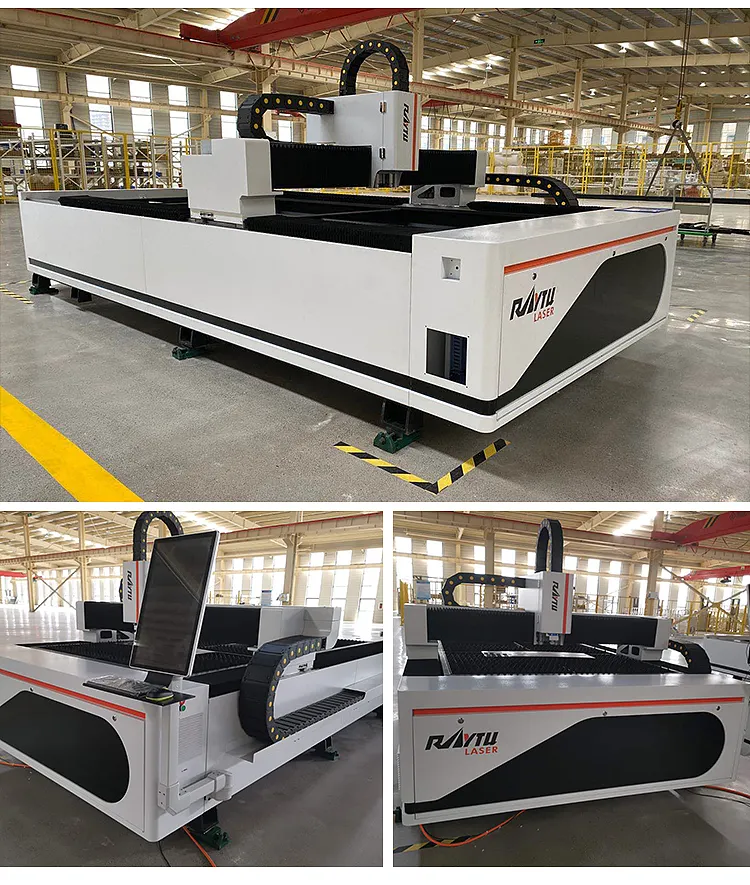

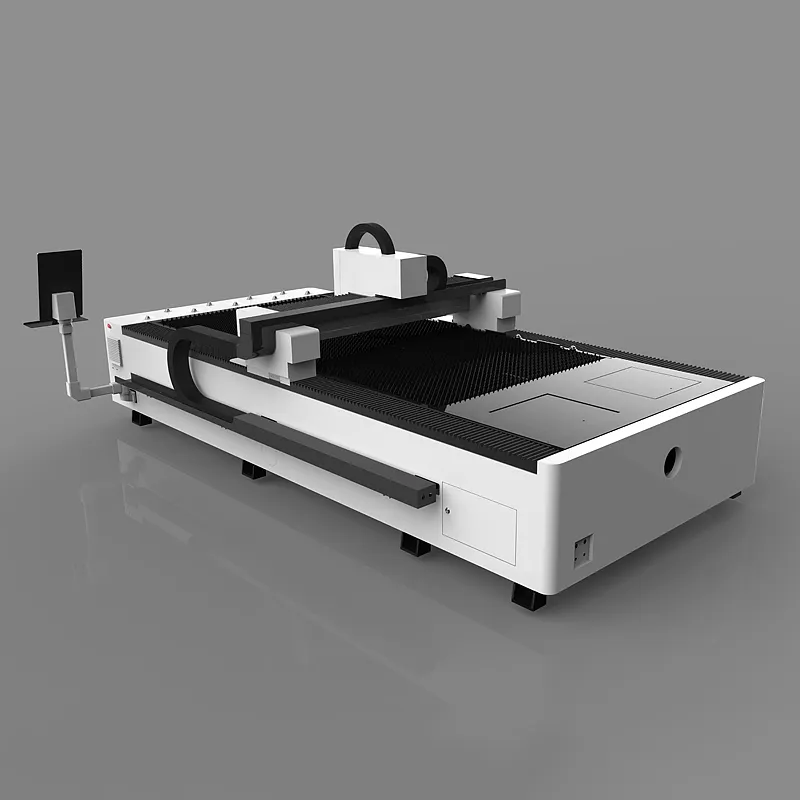

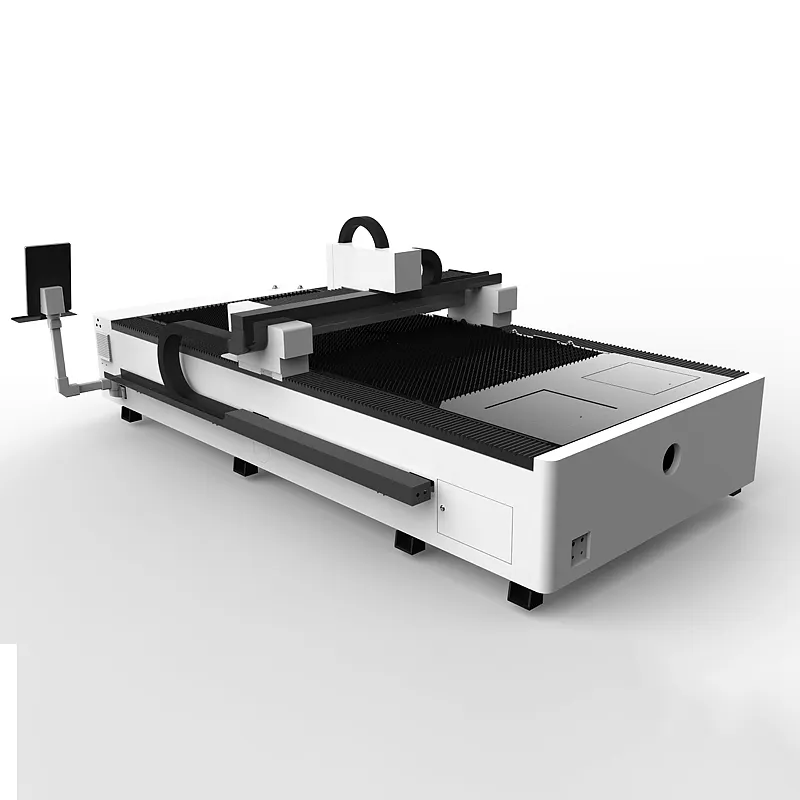

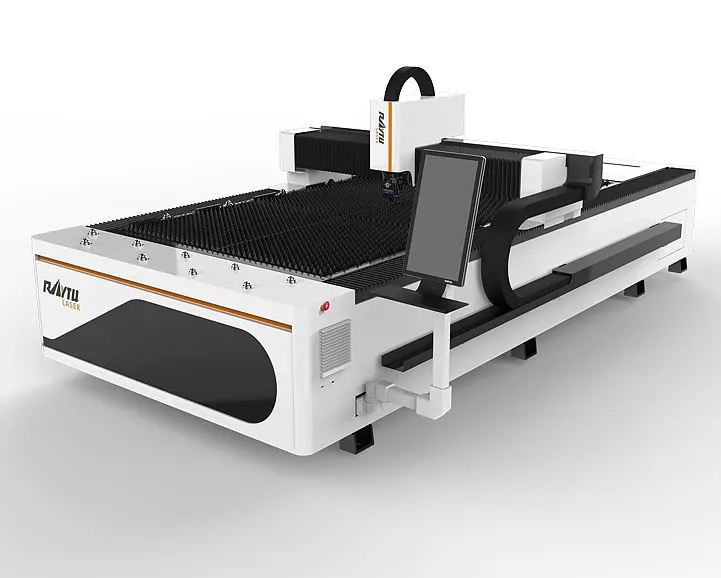

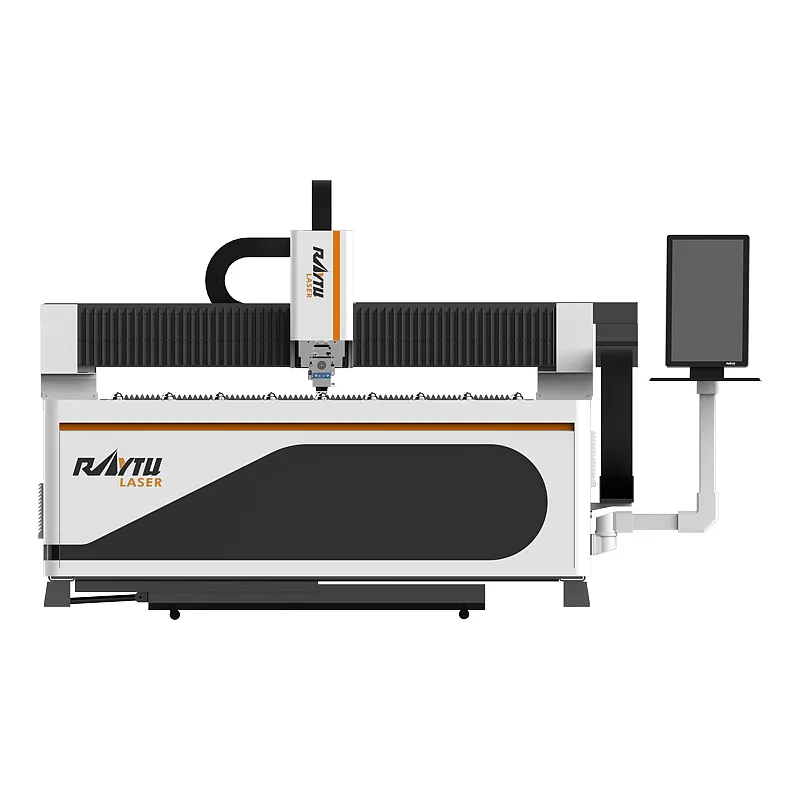

Metal Plate Laser Cutting Machine RT-H

Max Moving Speed: 100m/min,Acc=1.0G
Laser source: MAX
Position Accuracy: ±0.03mm
Reposition Accuracy: ±0.02mm

RT-H Metal Plate Laser Cutter Description:

Metal sheet laser cutting machine is kind of optical mechatronics product that composes of fiber laser source, laser cutting head, control system, cooling system, servo motor, welded frame, etc. RT-H metal sheet laser cutter adopts the structure of fixed workpiece and movable gantry with three axis control of the CNC machine. The X, Y axis linkage achieves plane cutting feed while Z axis floats and tracks workpiece surface. Sheet metal laser cutting is especially suitable for stainless steel sheet, iron plate, diamond saw blade and other materials, which has good processing effect for all kinds of hard and brittle alloys. In sheet metal industry, laser cutting technology can partly replace punch and wire cutting. The product is mainly used for cutting carbon steel, silicon steel, stainless steel sheet, aluminum alloy, titanium alloy, galvanized plate, pickling plate, aluminum zinc plate, copper and other metal materials.

RT-H Metal Plate Laser Cutting Machine Features:

Compact structure:

Fully integrated design, short installation time, equipment in place can be quickly put into production. Small floor area, save workshop space.


Simple and easy to use control system:

The control system is powerful, easy to learn and use, and can complete a series of operations such as nesting and typesetting on the equipment.


Efficient cutting:

XY single axis acceleration up to 1.0g, XY single axis positioning speed up to 80min.


The cutting scheme specially optimized on thick metal sheet cutting:

Suitable for processing ultra thick metal sheet with high power laser, and the cutting process is continuous and stable.


Adopt high standard heavy duty steel welding structure:

After strict thermal aging treatment of the welded frame, the bed will not deform after long time operation.

RT-H Metal Plate Laser Cutting Machine Parameters:

Equipment Specification

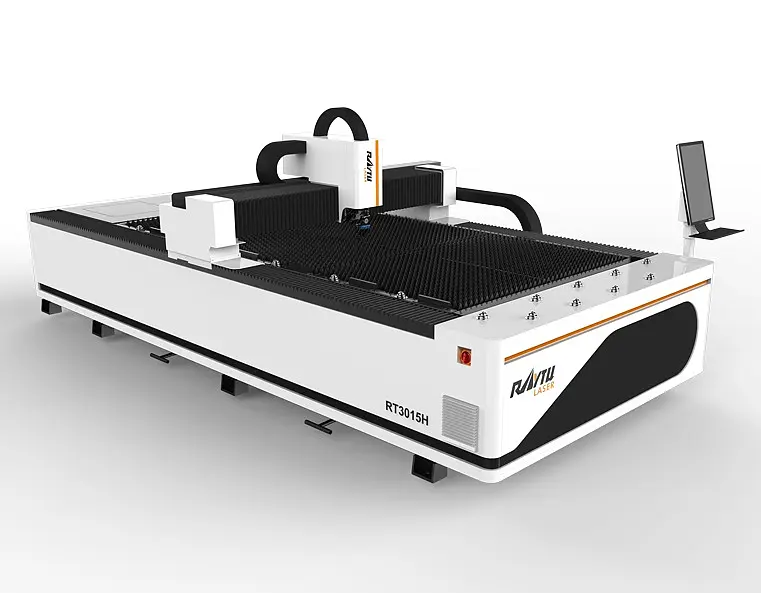

Model RTC3015H RTC4015H RTC6015H RTC4020H RTC6020H
Cutting Area 3000*1500mm 4000*1500mm 6000*1500mm 4000*2000mm 6000*2000mm
Laser source MAX MAX MAX MAX MAX
Max Moving Speed 100m/min,Acc=1.0G 100m/min,Acc=1.0G 100m/min,Acc=1.0G 100m/min,Acc=1.0G 100m/min,Acc=1.0G
Position Accuracy ±0.03mm ±0.03mm ±0.03mm ±0.03mm ±0.03mm
Reposition Accuracy ±0.02mm ±0.02mm ±0.02mm ±0.02mm ±0.02mm
Power 380V 50/60Hz 50A 380V 50/60Hz 50A 380V 50/60Hz 50A 380V 50/60Hz 50A 380V 50/60Hz 50A
Max Loading(KG) ≤4000 ≤5000 ≤5500 ≤6000 ≤6000
