1KW Fiber Laser Cutting Machine

Power: 380V 50/60Hz 50A
Max Moving Speed: 100m/min,Acc=1.0G
Position Accuracy: ±0.03mm
Reposition Accuracy: ±0.02mm

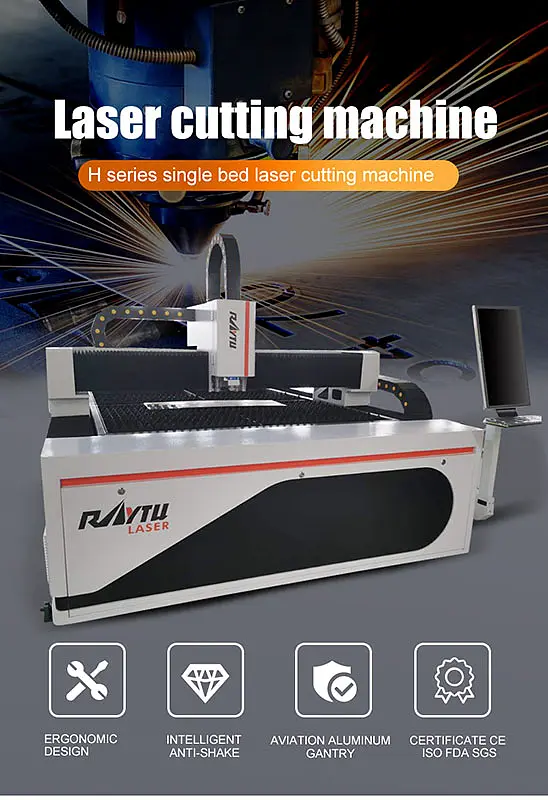

Raytu 1000w Laser Cutting Machine Description:

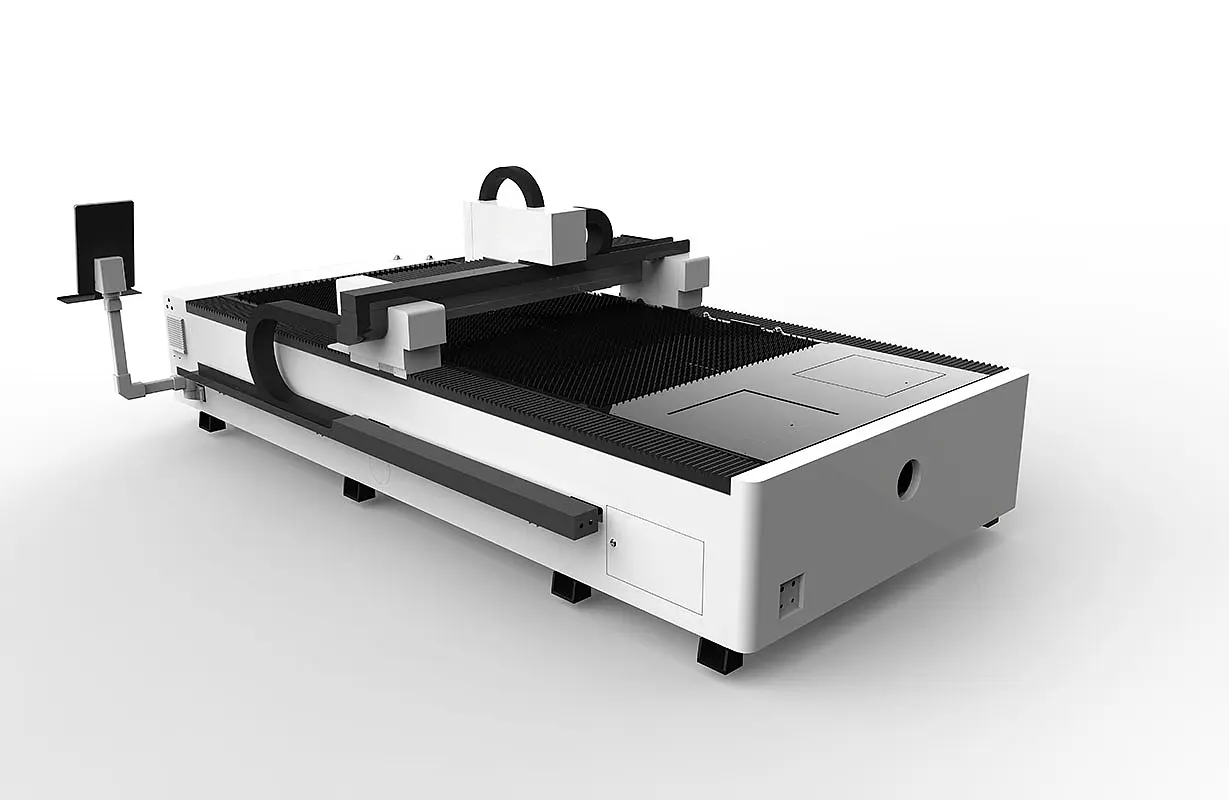

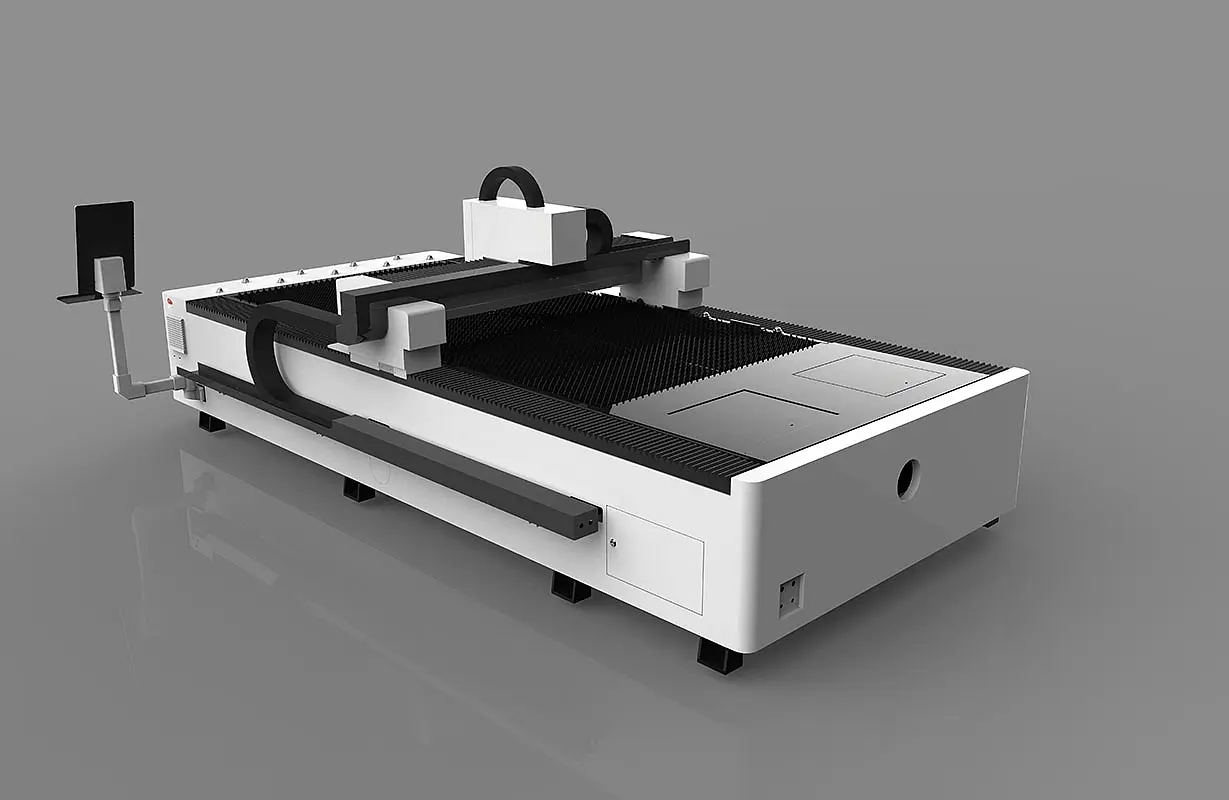

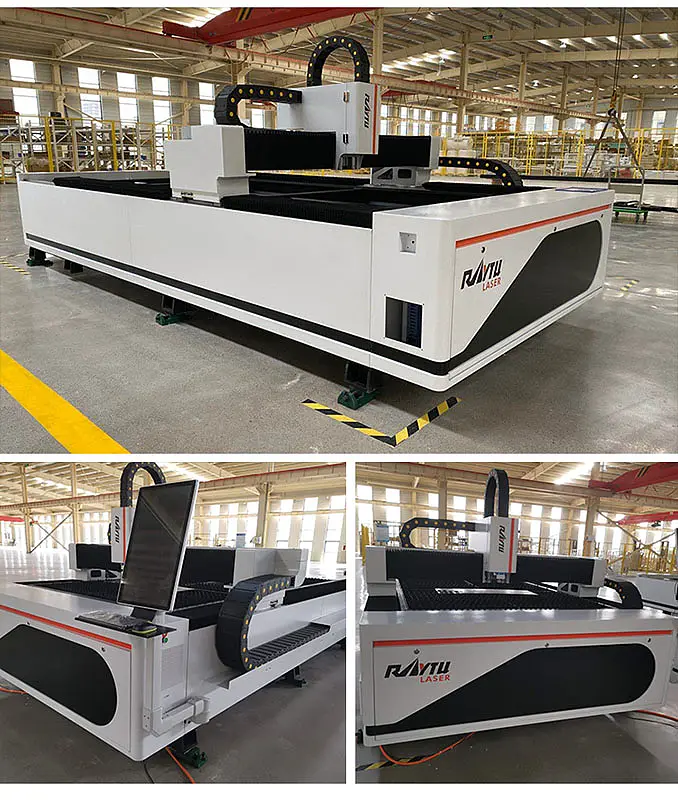

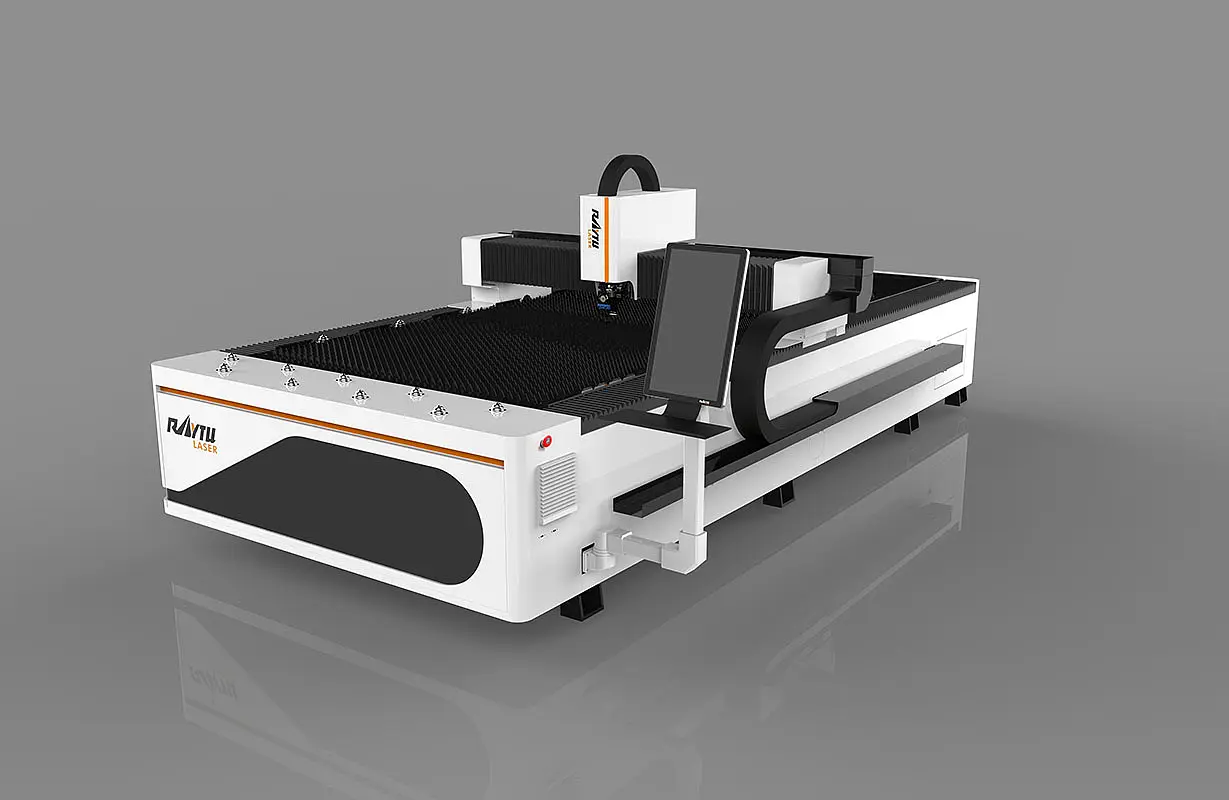

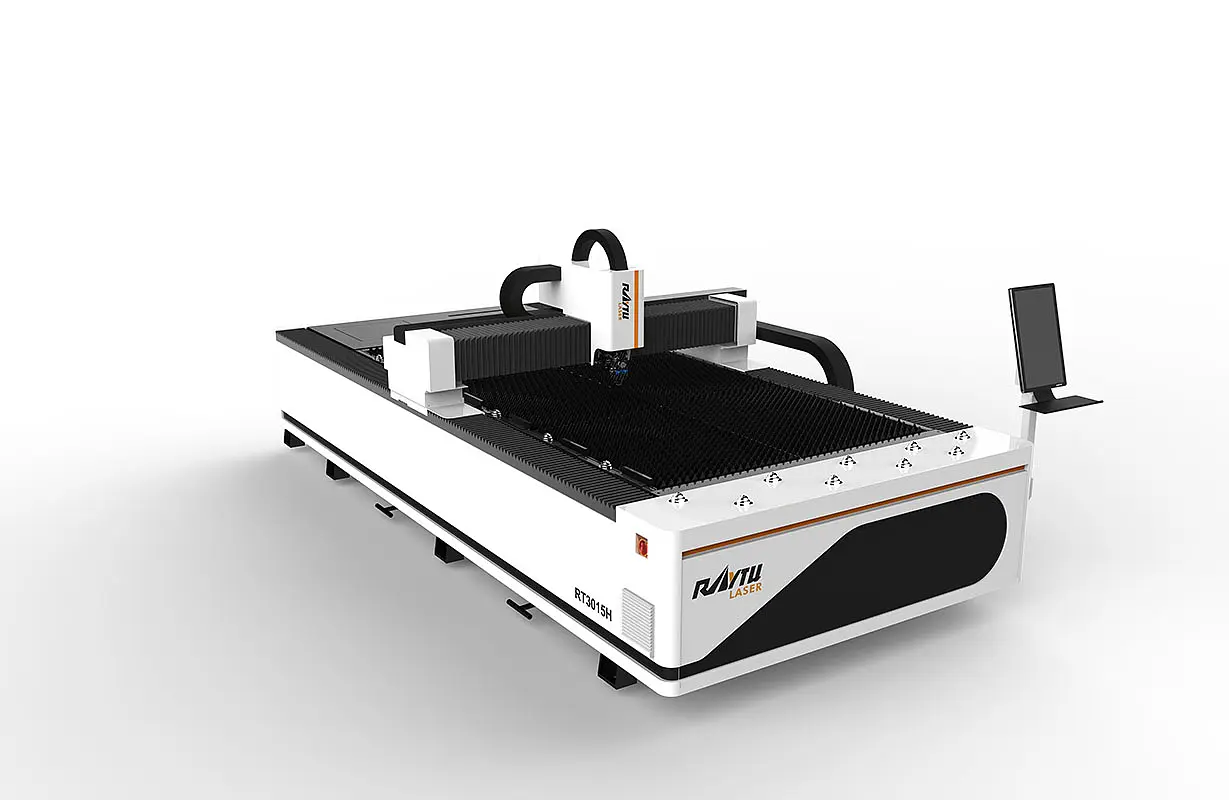

Raytu 1000W optical fiber laser cutting machine adopts gantry structure, aluminum alloy beam, imported grinding rack, imported high-precision linear guide drive system, professional laser cutting CNC system and high-performance servo motor. It is a high-tech product integrating laser technology, precision machinery, CNC technology and other advanced technologies. The 1000W fiber laser cutting machine is mainly used for fast cutting of carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized sheet, brewing and washing sheet, aluminum and zinc plated sheet and other metal materials. The 1000 Watt laser cutter has the ability to resist high reflection and canapply cut on copper and aluminum. Industry application include sheet metal processing, aviation, aerospace, electronics, electrical appliances, subway accessories, automobiles, machinery, ships, metallurgical equipment, elevators, kitchenware, household appliances, craft gifts, tool processing, decoration, advertising, metal processing and other manufacturing and processing industries.

1KW Laser Cutting Machine Features:

1 Professional CNC control system can ensure the cutting quality, make the cutting work more convenient;

2 Gantry structure, high damping bed, high rigidity, can withstand high speed and acceleration;

3 Exchange workbench configuration, shorten standby time, effectively improve work efficiency by more than 30%;

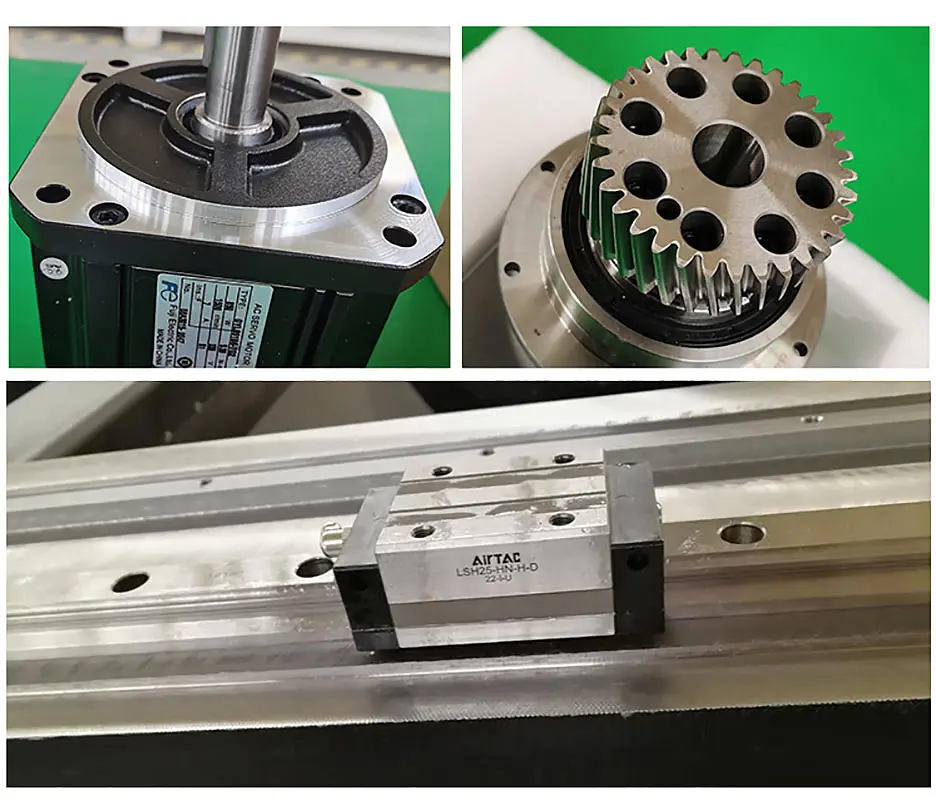

4 The machine adopts imported AC servo system drive and imported transmission system, and the machine motion mechanism adopts imported rack and pinion drive and linear guide rail guidance, which ensures the high speed, high precision and high reliability of the equipment;

5 The rack and guide rail adopt the fully sealed protection device to prevent the oil-free friction movement and dust pollution, improve the service life of the transmission parts and ensure the movement accuracy of the machine tool;

6 The laser cutting head is equipped with imported capacitance non-contact height tracking system, which is sensitive and accurate, avoiding the collision between the cutting head and the processed plate, ensuring the cutting focus position and the stable cutting quality;

7 The laser cutting head can bear 2.0MPa gas pressure, which improves the cutting ability of stainless steel and other difficult cutting materials;

8 The machine has automatic partition smoke exhaust system, which has good smoke exhaust effect and low pollution;

9 Small area, highly integrated system, convenient operation and maintenance, meet the needs of 24-hour industrial production;

1000w Laser Cutting Machine Parameters:

Equipment Specification
Model RTC3015H RTC4015H RTC6015H RTC4020H RTC6020H
Cutting Area 3000*1500mm 4000*1500mm 6000*1500mm 4000*2000mm 6000*2000mm
Laser source MAX MAX MAX MAX MAX
Max Moving Speed 100m/min,Acc=1.0G 100m/min,Acc=1.0G 100m/min,Acc=1.0G 100m/min,Acc=1.0G 100m/min,Acc=1.0G
Position Accuracy ±0.03mm ±0.03mm ±0.03mm ±0.03mm ±0.03mm
Reposition Accuracy ±0.02mm ±0.02mm ±0.02mm ±0.02mm ±0.02mm
Power 380V 50/60Hz 50A 380V 50/60Hz 50A 380V 50/60Hz 50A 380V 50/60Hz 50A 380V 50/60Hz 50A
Max Loading(KG) ≤4000 ≤5000 ≤5500 ≤6000 ≤6000
