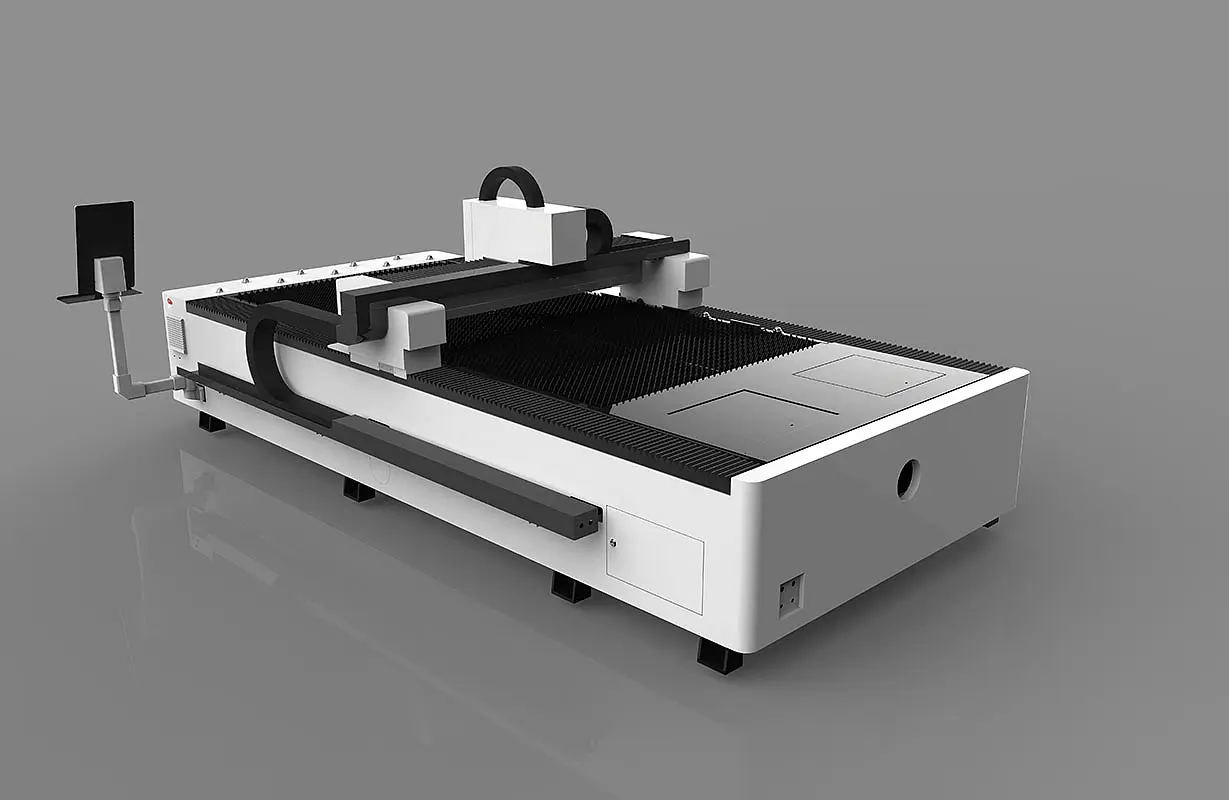

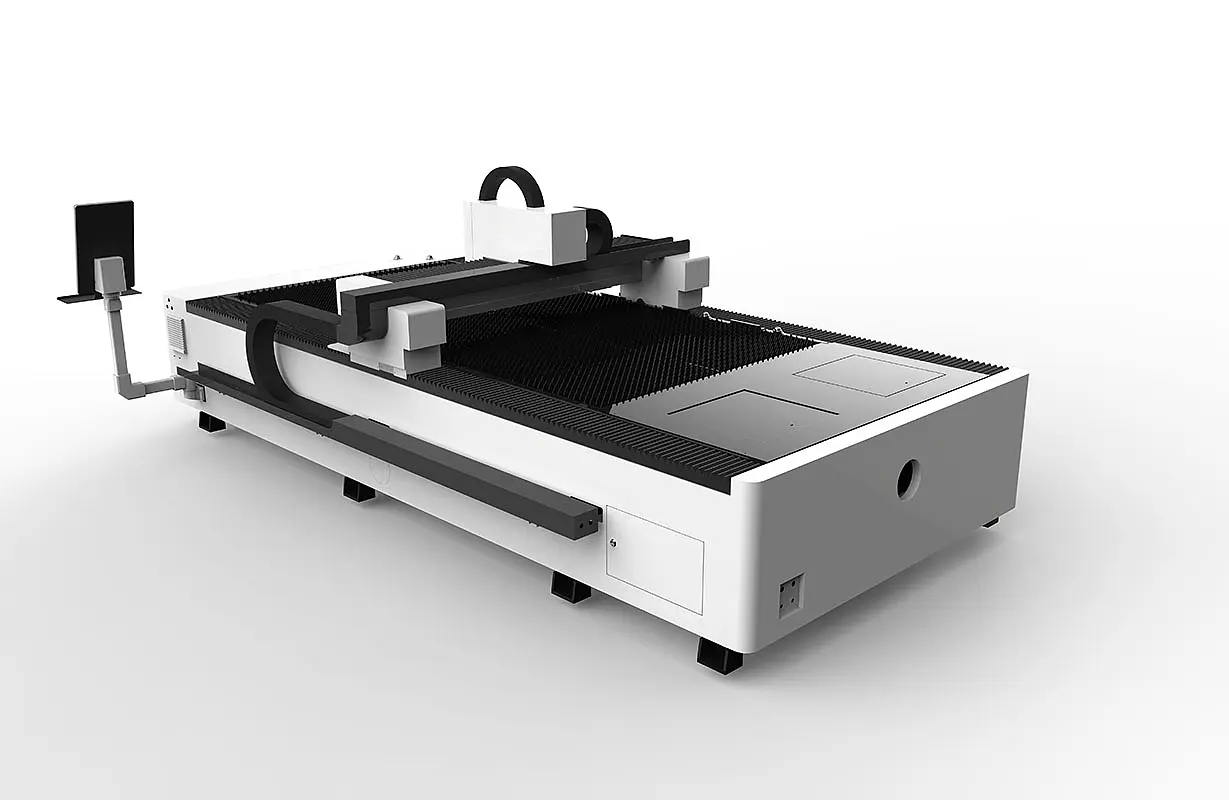

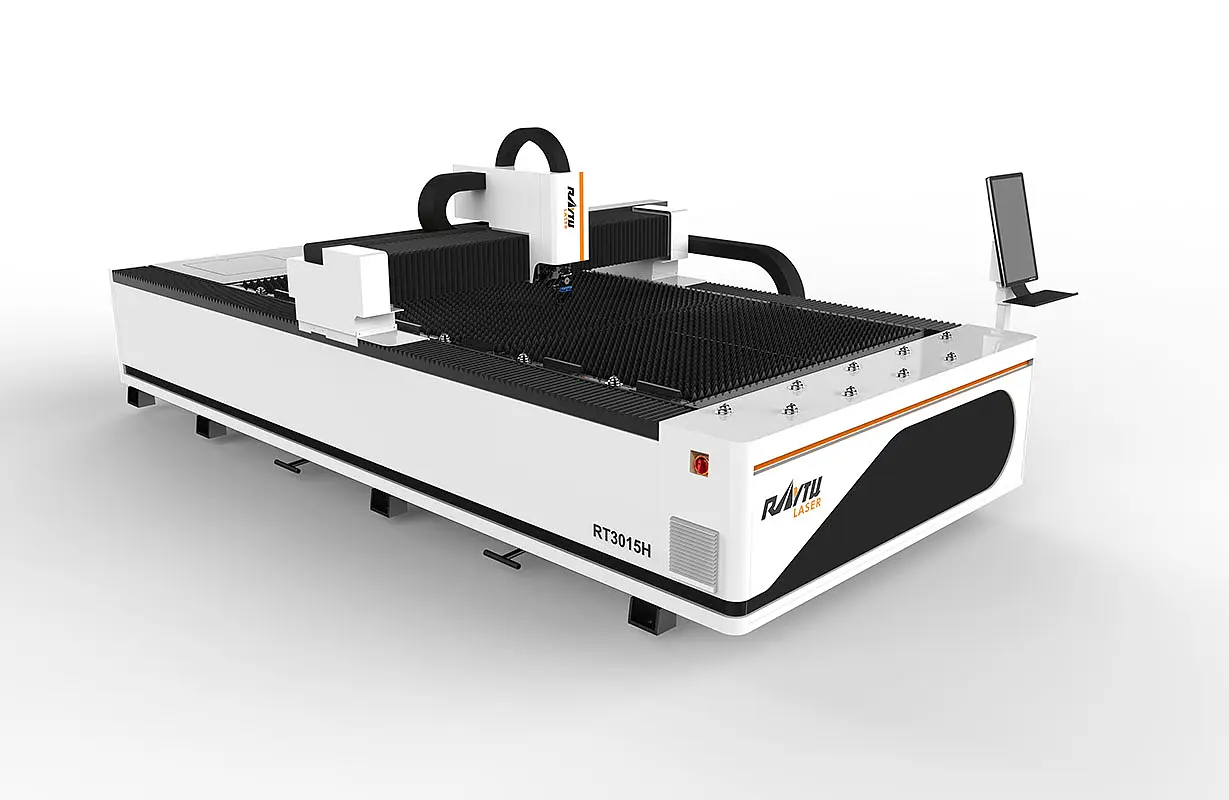

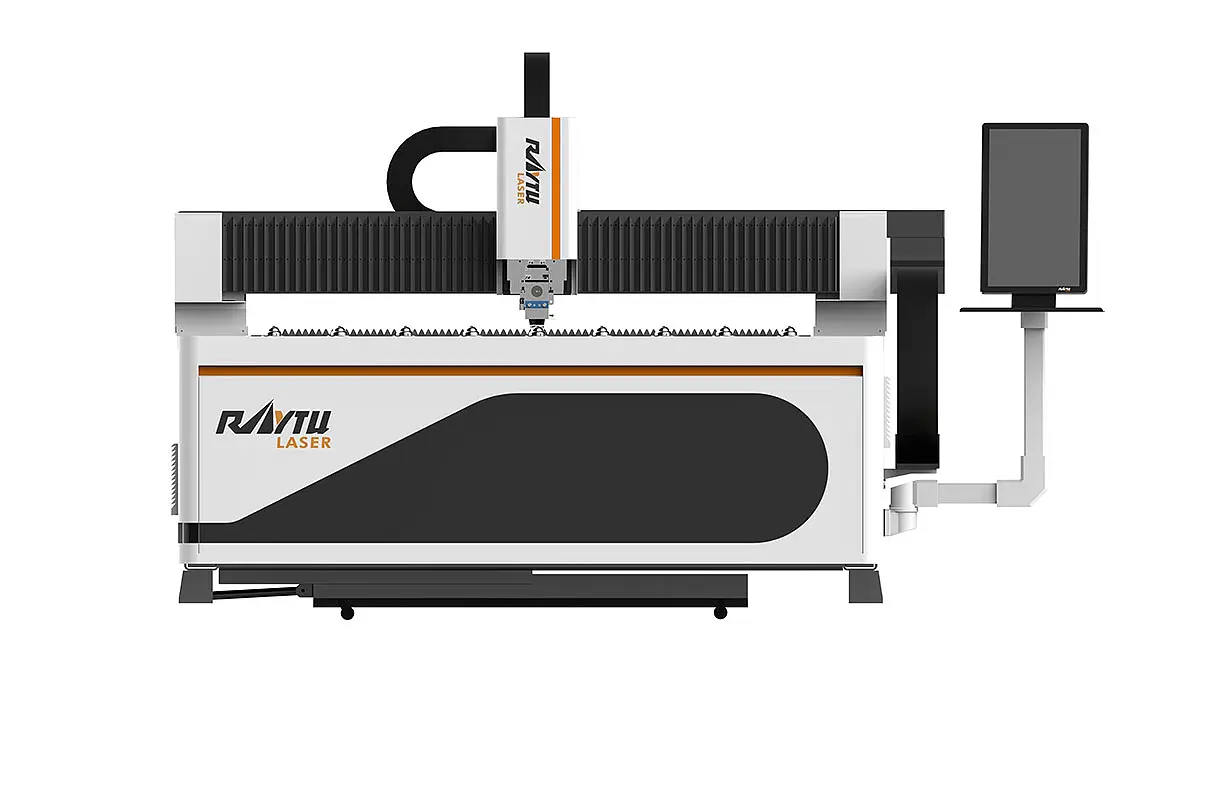

Automatic CNC Metal Fiber Laser Cutting Machine

Power: 380V 50/60Hz 50A
Laser source: MAX
Position Accuracy: ±0.03mm
Reposition Accuracy: ±0.02mm

Raytu Automatic Laser Cutting Machine Description:

Raytu is committed to the R & D, manufacturing and sales for automatic laser cutting machine. The main products include stainless steel laser cutting machine, plate laser cutting machine, carbon steel laser cutting machine, pipe laser cutting machine. The products cover a full power series of optical fiber laser cutting machine from 1000watt to 20000 watt, laser exchange platform and other laser products. Automatic laser cutter products are widely used in iron and steel metallurgy, non-ferrous metals, automobile Industry, aerospace, precision instrumentation, machinery manufacturing, hardware tools and other industries. Raytu high power laser is more cost-effective, faster cutting speed, you are worth having.

Exchange Table Laser Cutting Machine Features:

1. Professional for high strength metal cutting

2. Compared with the traditional manual cutting and general cutting machine methods, Raytu automatic laser cutting machine has the advantages of faster speed, higher precision, humanized design, simple and fast operation, and zero loss of materials.

3. The unique intelligent positioning system can automatically capture the cutting target, quickly locate and accurately cut.

4. No dragging, zero scrap rate

5. Save time, labor and cost

6. Laser cutting is safer and more environmental-friendly.

7. Free software upgrade for life-time, free after-sales service for the whole machine for one year, and lifelong maintenance service.

Automatic Laser Cutting Machine Parameters:

Equipment Specification
Model RTC3015H RTC4015H RTC6015H RTC4020H RTC6020H
Cutting Area 3000*1500mm 4000*1500mm 6000*1500mm 4000*2000mm 6000*2000mm
Laser source MAX MAX MAX MAX MAX
Max Moving Speed 100m/min,Acc=1.0G 100m/min,Acc=1.0G 100m/min,Acc=1.0G 100m/min,Acc=1.0G 100m/min,Acc=1.0G
Position Accuracy ±0.03mm ±0.03mm ±0.03mm ±0.03mm ±0.03mm
Reposition Accuracy ±0.02mm ±0.02mm ±0.02mm ±0.02mm ±0.02mm
Power 380V 50/60Hz 50A 380V 50/60Hz 50A 380V 50/60Hz 50A 380V 50/60Hz 50A 380V 50/60Hz 50A
Max Loading(KG) ≤4000 ≤5000 ≤5500 ≤6000 ≤6000
